Semi-automatic case sealing machine designed and engineered by SIAT specifically for small/medium sized boxes.
KEY FEATURES
- Practical - Seals upper & lower flaps of cardboard cases or cartons
- Added Protection - Lockable electric isolation switch
- Safety First - Central emergency stop to work safety on both sides of the machine
- Taping Heads - Available with K11 or K12 taping heads
- Simple Operation - Intuitive and quick machine set-up
- Quality Build - Best-In-Class components with SIEMENS electrics
- New feature - Top taping head removable
- Improved Design - Quick release Taping Heads (Top & Bottom – No tools required)
- CE compliant - Engineered and produced in Italy according to EU safety standards
- Removable Top Taping-Head
- Removable Bottom Taping-Head
- Adjustable Tape Leg
- Pre-Installed & Easy-To-Mount
- Adjustable Tape Contact Pressure
Technical Data
- Belt position: Bottom

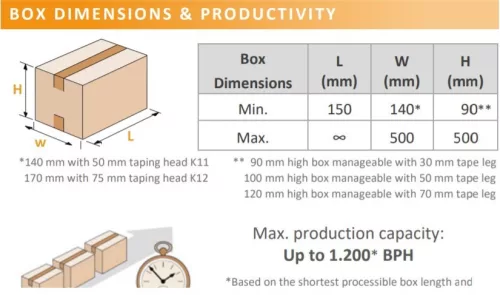

- Box Size: Medium
- Min / Max box weight: 2 - 30 kg
- Default Taping Head: K11 for 2" = 50 mm
- Alternative Taping Heads: K12 for 3" = 75 mm
- Power Consumption (std.): 0,13 kw
- Air Consumption (NL/Cycle) -
- Operator Side: Left (standard) / Right (optional)

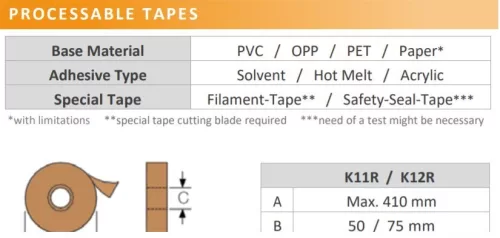

- Tape width (mm): 50 (std.) / 75 (opc.)
- Tape Leg (mm): 70 (std.) / 50 / 30 (opc.)
- Ingress Protection Code: IP54
- Ambient Operating Temperature: 5 – 40 °C
- Maximum level of noise Depending on tape quality
-
Supplier SiatUnit CollectingArticle No. 032981
-
