EXTEND EXS-158 PLUS Automatic strapping machine

EXTEND EXS-158 PLUS Automatic strapping machine

Features:

Dispenser inside cabinet

Easy panel with rotation function

Electric outside tension control

Table sensor

Auto strap threading

Loop ejection

2^nd strap refeed

Auto last strap ejection

Simple machine head with no any clutch & no belt &no chain

Specification:

Arch size: 850 x 600 mm (LxH)

Strap type: PP

Strap width: 9, 12 mm

Strap thickness: 0,45 -0,7 mm

Tension range: 70 - 650 N

Max. speed: 37 straps/min (same for 50 Hz)

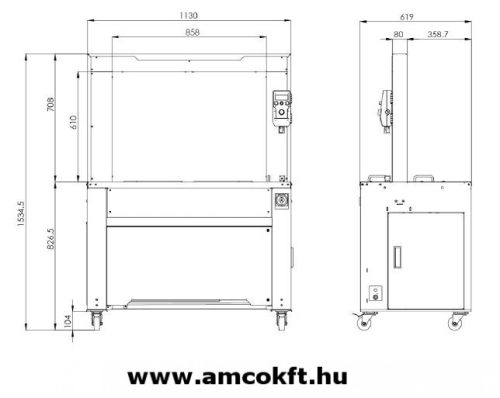

Machine size:

• Length: 1126 mm
• Width: 625 mm
• Height: 1540 mm

Table high: 835 mm

Noise emission: 78 dB

Package size:

• Min.: 70 x 20 mm (LxH)
• Max.: 848 x 598 mm (LxH)

Power supply: 230 V, 50 Hz, 1-Phase

Net weight: 180 Kg
