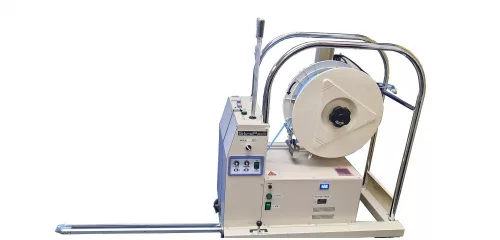

STRAPACK D-53PLT2 Strapping machine, semi-automatic

STRAPACK D-53PLT2 Strapping machine

The D-53PLT2 is designed to economically and quickly strap most kinds of pallets and skids using standard or heavier polypropylene strapping.
The D-53PLT2 can cut the time it takes to strap pallets up to by 2/3 when compared to hand tools. Its simple operation entails pushing the track into the pallet void, pressing a button to feed the strap, and inserting the tip of the strap in the machine - and within 2 seconds your strap operation is completed.
The D-53PLT2's unique design enables to strap pallets as low as 350mm or 14". Arch track is retractable with a hand-crank. The height of the track is also adjustable to two positions depending on the type of the pallet or size of its void. For edge protection insertion, the manual mode can be selected to control strap completion. Battery operated version is available.

Standard specifications:

Dimension:

• width: 2195 mm
• height: 1208 mm
• depth: 542 mm
• weight: ~90kg

Bayonet height: 10, 22,5 ,35 mm

Package size: 380 mm - free

Joint: heat seal

Strap: polypropylene

Strap width: 12 / 15,5 mm

Strap tension: 90-690 N

Power supply: 230 V, 50 Hz, 1 Phase
