ELENA MARCHETTI Goldtape 346 carton sealer
Cikkszám:
000962
Elena Marchetti GOLDTAPE 346

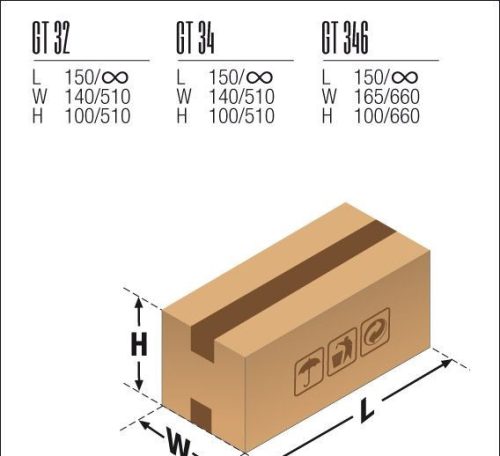

DIMENSIONS OF THE BOXES TO SEAL:
- Length: 150 mm to infinite
- Width: 165 to 660 mm
- Height: 100 to 660 mm
MACHINE DESCRIPTION:
Semiautomatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type boxes, for uniform carton size batches, with manual dimensioning. The adjustments are fast and easy, also allowing its use by non-specialist operators. Particularly recommended for high or low boxes. The machine, when combined with infeed and outfeed conveyors, represents a simple, effective and economical packaging station.
TECHNICAL DESCRIPTION :

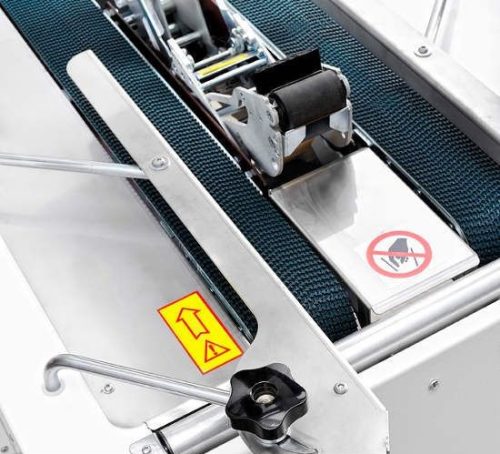

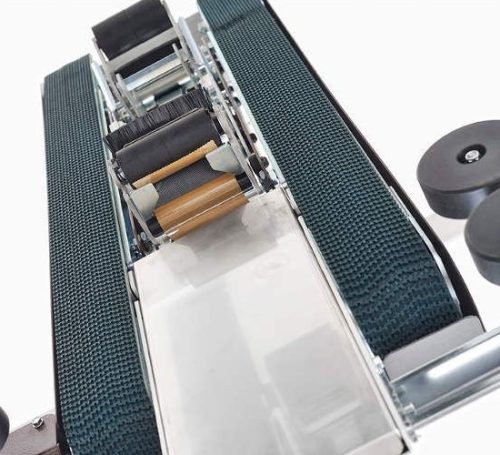

Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by mean of 4 flat drive belts, 2 bottom and 2 top, driven by a single motor. The regulations for the various formats are carried out using hand-wheels.
TECHNICAL DATA:
Weight: 173 Kg
Standard tape heads: TU2.2 o TU2.3 (tape width 50 mm)
Legs: adjustable legs with fix feet
Productivity: 1300/1500 boxes per hour
Box transfer speed: 24 metres / min.
Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
Service temperature: + 5° C to + 35° C
Electrical protection level: IP 54
Installed power: 0,25 kW
Plan dimensions: 990 X 1157 mm
Bed height (working height): 650 mm
OPTIONS:
- EXTENDABLE
- KIT RFN TAPE BREAK/END ALARM
- OPPOSITE VERSION
- STOP&GO KIT (drived belt timed stop)
- PACK TABLE
- SET OF 4 SUPPORT LEGS WITH WHEELS Ø 80 MM
- SET OF 4 ADJUSTABLE SUPPORT LEGS WITH WHELLS Ø 100 MM
- INCREASED PRODUCTIVITY
- ROLLER CONVEYOR
Related products
Műszaki adatok:
Gép súlya: 173 kg
Termelékenység: 1300-1500 doboz/óra
Doboz átviteli sebessége: 24 m/perc
Energia igény: 400V – 50 Hz
Teljesítmény: 0,25 kW
Termék típusa:
dobozzáró
Supplier:
ELENA MARCHETTI
Weight:
173 kg/pc
